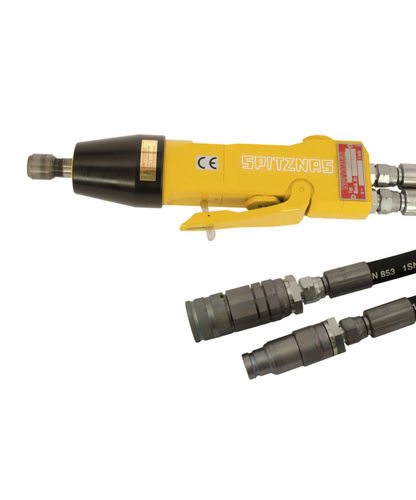

Underwater grinder 1 5080 0010

hydraulicstraight

This powerful hydraulic grinder is ideally suited for hard grinding work and for underwater work. This type has an collet diameter of 6 mm. Operating pressure - 90-140 bar Actuation - Lever valve Tool holder - Collet dia. 6 mm Volume flow - 10-30 l/min Power - 0.8 kW Speed (free) - 11.500 rpm Length - 274,50 mm Connection - SAE Port No. 8 (3/4x16UNF-2B) mm Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 90.7 dB(A) Noise level LWA - 101.7 dB(A) Vibration level - <2.5 m/s² Weight - 1.6 kg Fields of application / branch - Metal industry and steel construction; Plant and mechanical construction; Underwater Work
