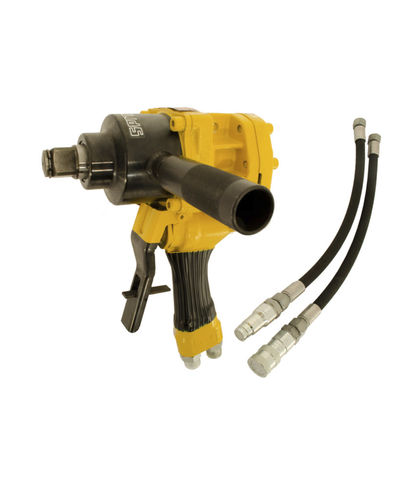

Underwater impact wrench 6 1515 0010

hydraulic3/4"

Universally usable hydraulic impact wrench for open circuit, also for diving work. ATEX Specification - II2GExhIIBT5Gb Energy source - Hydraulic Operating pressure - 70-140 bar Square drive - 3/4" Screws up to - M30 mm Volume flow - 20-40 l/min Max. torque - 1,700 Nm Adjustable torque - 350-1,700 Nm Distance center to outer edge - 45.00 mm Impacts - 1,200 rpm Width without 2nd handle - 100.00 mm Connection - M18x1.5 mm Hydralic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit - open circuit Oil filtration - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 85.3 dB(A) Noise level LWA - 96,3 dB(A) Vibration level - 3.8 m/s² Weight - 7.3 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
