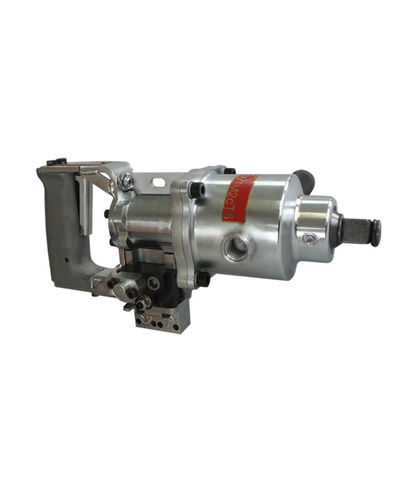

Underwater impact wrench 6 1516 0010

hydraulic3/4"

Universally usable hydraulic impact wrench for closed circuit which also can be driven with HFA emulsion. Operating pressure : 260 bar with hydraulic oil, 300 bar with HFA emulsion ATEX Specification - IM2ExhIMbT5 Energy source - Hydraulic/HFA-Emulsion (min. 0,3%) Operating pressure - 180-260 (300 HFA) bar Screws up to - M30 mm Volume flow - 9.5 l/min Max. torque - 1,700 Nm Adjustable torque - 350-1,700 Nm Distance center to outer edge - 52.50 mm Impacts - 1,800 rpm Width without 2nd handle - 104.00 mm Hydralic hose connection - STECKO-10 Hydraulic medium - Hydraulic oil Hydraulic circuit - closed circuit Oil filtration - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 94.5 dB(A) Noise level LWA - 103,5 dB(A) Vibration level - 1.1 m/s² Weight - 7.4 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction; Underwater Work
