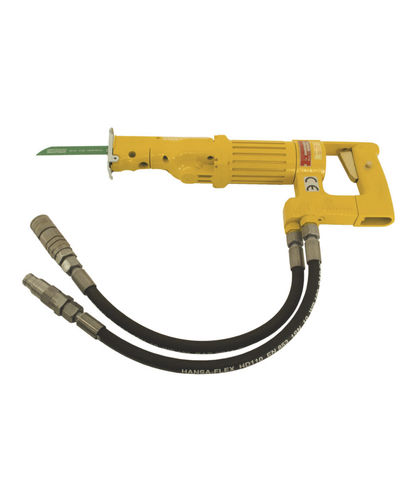

Sabre underwater saw 5 1219 0010

hydraulicwoodfor steel

The hydraulic sabre saw for hardest cutting demands with higher driving performance as well for underwater use. ATEX Specification - II2GExhIIBT5Gb Energy source - Hydraulic Operating pressure - 90-140 bar Volume flow - 22-50 l/min Power - 1.5 kW Number of strokes (free) - 1.500 rpm Stroke - 28.00 mm Cutting capacity in wood/steel - 160/19 mm Connection - M18x1.5 mm Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 76.0 dB(A) Vibration level - 15.3 (chipboard) / 19.3 (wooden beam) m/s² Weight - 6.0 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
