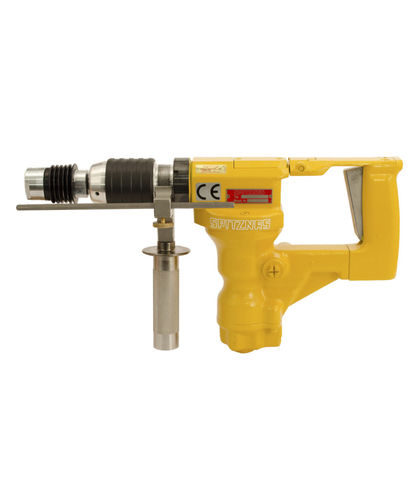

Hand-held underwater hammer drill 2 2406 0010
hydraulic

Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic - image - 2
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic - image - 3
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic - image - 4
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic - image - 5
Hand-held underwater hammer drill - 2 2406 0010 - Spitznas - hydraulic - image - 6
Add to favorites
Compare this product

Go to the Spitznas website for more information

Characteristics

Type
hand-held
Power source
hydraulic
Rotational speed

Max.: 500 rpm
(3,141.6 rad.min-1)

Min.: 450 rpm
(2,827.4 rad.min-1)

Description

The hydraulic rotary hammer for drilling up to diamater 28 mm in concrete. Impact mechanism can be switched on and off. The rotary hammer is usable as well under water. ATEX Specification - II2GExhIIBT5Gb Operating pressure - 80 bar Shank - SDS plus Max. drilling dia. in concrete - 5.00-28.00 mm Max. drilling dia. in steel - 5.00-13.00 mm Max. drilling dia. in wood - 5.00-30.00 mm Function - drilling/hammer drilling Percussion (under load) - 3,400 rpm Percussion energy - 2.0 Joule Power - 1.2 kW Volume flow - 15-45 l/min Dimensions - 460x260x102 mm Connection - SAE Port No. 8 (3/4x16UNF-2B) Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydrauli oil Hydraulic circuit type - open circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Water connection - R1/4"female Noise level LpA - 92.0 dB(A) Noise level LWA - 101.0 dB(A) Vibration level - 4.5 m/s² Weight - 8.2 kg Fields of application / branch - Energy and pipeline construction; Plant and mechanical construction; Underwater Work
