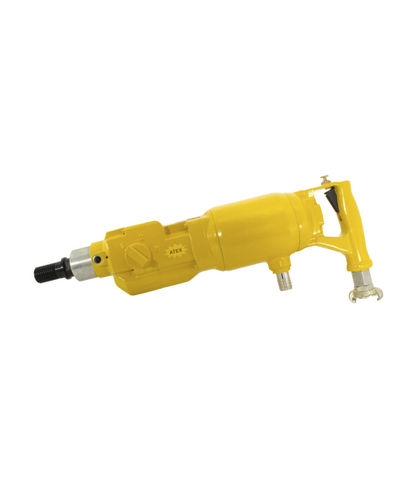

Hand-held underwater core drill 2 1355 0010

pneumatic

The pneumatic core drill unit for all hand-operated drillings in concrete, stone and masonry up to 82 mm diameter and 160 mm diameter with drill rig, as well as for underwater operation. ATEX Specification - II2GExhIIBT6Gb Operating pressure - 6 bar Drill bit adapter - 1 1/4" UNC male / R1/2" female Drill bit max. dia. - 160.00 mm To use for - free-hand drilling/with drill rig Gear stages - 3 Torque stages - 90/56/29 Nm Power - 2.80 kW Air consumption - 3.50 m³/min Tool adapter center dia. - 60.00 mm Total length - 594.00 mm Connection - R3/4"male Cooling connection - Gardena system Noise level LpA - 83.0 dB(A) Noise level LWA - 94.0 dB(A) Vibration level - <2.5 m/s² Weight - 9.2 kg Fields of application / branch - Energy and pipeline construction; Plant and mechanical construction; Underwater Work
