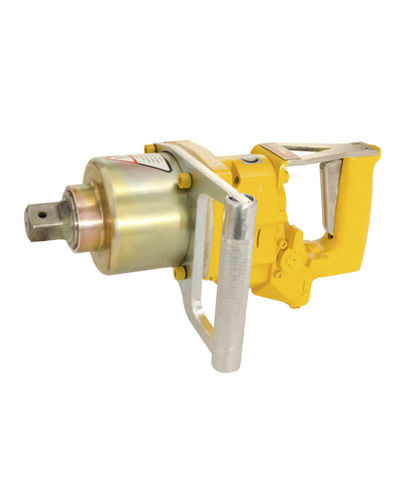

Underwater impact wrench 6 1520 0010

hydraulic1"

Our most powerful 1" hydraulic impact wrench for open circuit, also for diving work. ATEX Specification - II2GExhIIBT5Gb Operating pressure - 90-140 bar Square drive - 1" Screws up to - M36 mm Volume flow - 25-45 l/min Max. torque - 2,500 Nm Adjustable torque - 850-2,500 Nm Distance center to outer edge - 60.00 mm Impacts - 2,200 rpm Width without 2nd handle - 112.00 mm Connection - 3/4-16UNF-2B mm Hydralic hose connection - Flat-Star A250-OM/OF-1/2”BSP Hydraulic medium - Hydraulic oil Hydraulic circuit - open circuit Oil filtration - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 99.2 dB(A) Noise level LWA - 110,2 dB(A) Vibration level - 6.8 m/s² Weight - 10.7 kg Fields of application / branch - Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction; Underwater Work
