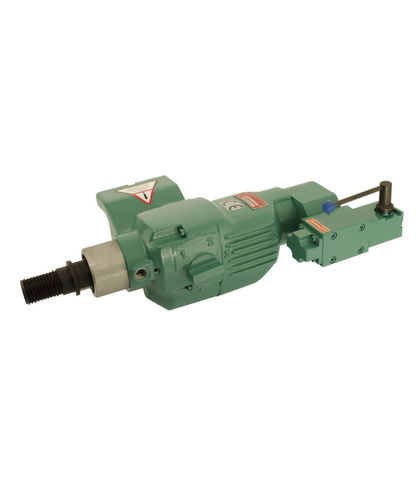

Rig-mounted underwater core drill 2 1327 0010

hydraulic

The strongest hydraulic core drill unit for drilling up to 300 mm with a drill rig. Hydraulic hose set included. ATEX Specification - II2GExhIIBT5Gb Operating pressure - 140 bar Drill bit connection - 1 1/4" UNC male / R1/2" female mm Max. drill bit dia. - 300.00 mm Application - with drill rig Gear stages - 3 Torque stages - 72/45/25 Nm Power - 3.10 kW Volume flow - 22-45 l/min Centering diameter - 60.00 mm Machine length - 490.00 mm Anschluss - R3/4"male Connection Hydraulic hose connection - Flat-Star A250-OM/OF-1/2”BSP Cooling water connection - Gardena System Hydraulic medium - Hydraulic oil Hydraulic circuit type - oopen circuit Oil filtration class - ISO-level of purity 20/18/13 Temperature of oil - -34 up to +82 °C Viscosity of oil - >13 centistokes Noise level LpA - 80.0 dB(A) Noise level LWA - 91.0 dB(A) Vibration level - <2.5 m/s² Weight - 9.0 kg Fields of application / branch - Energy and pipeline construction; Plant and mechanical construction; Underwater Work
