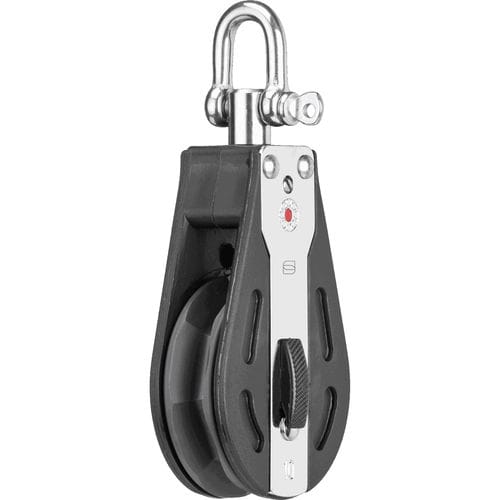

Single block 3536071055
ratchetwith swivelball bearing

single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
ratchet
Configuration
with swivel
Bearing type
ball bearing
Maximum line diameter
max. rope ø 10 mm
Application domain
for sailboats
Material
plastic
Working load

225 kg
(496 lb)

Breaking load

900 kg
(1,984.2 lb)

Weight

133 g
(5 oz)

Description

smooth-running Delrin ball bearing (red point = ball bearing) in the outer collar and enhancing strap of stainless steel marking of the maximum rope Ø in the enhancing strap wobble riveting avoids sharp burrs at the rivet head cheek parts and sheaves of high quality UV-resistant plastic sheaves of specially coated aluminum amd Shackle swiveling or fixable low weight and excellent price/performance ratio Ratchet block (right ratcheting) for 6-10 mm rope with a special coated aluminium pulley. The swivel can be rotated 360°, but can be fixed by tightening the screws on both sides. The shape-retaining stainless steel tab shows the type of bearing used and the maximum rope thickness at a glance. Further advantages at a glance: side parts made of UV-resistant, glass-fibre reinforced plastic dimensionally stable, continuous stainless steel strap for added stability and safety indication of the type of bearing used and maximum rope thickness on the stainless steel tab no sharp ridges on the rivet head thanks to tumble riveting »Made in Germany« - manufactured in our own factory in Iserlohn, North Rhine-Westphalia constant quality checks - before, during and after production excellent price/performance ratio
