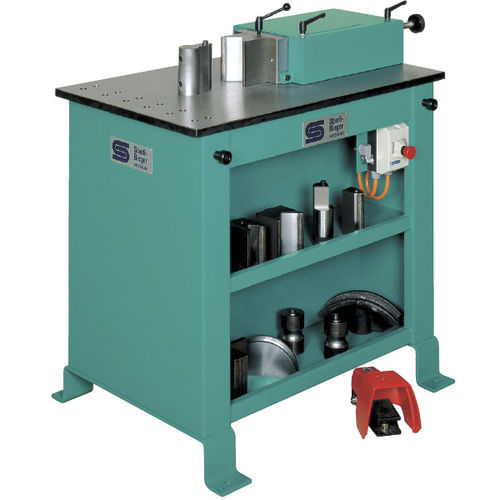

Shipyard bending machine 120 HE

hydraulicprofile

The Stierli-Bieger 120 HE is a very compact bending machine made from solid steel. The bending pin with a diameter of 60 mm is inserted 110 mm into the plate. An extremely wide range of tasks can be carried out with the 130 mm tools. The large working plate ensures that larger bent parts can be positioned easily. The special oil-lubricated guided cylinder requires no maintenance! The machine is extremely versatile with its large 120 mm stroke and simple tool holder. Stroke restriction is carried out hydro-mechanically, making operation easy with maximum precision. The machine can be transported easily inside the factory with a pallet truck. A tool tray provides organised storage of the tools so that they are always to hand. Working power - 12 to / 120 kN Tooling height - 130 mm / 5" (inch) Bending capacity flat - 130 / 12 mm Straightening capacity - light straightening work Pipe bending - 3/8" - 1 ½" Round bar - ø 25 mm Control - Manual control Cylinder stroke - 0 - 170 mm Smallest U-bend with narrow section punch - 45 mm Cylinder speed - 0.60 m/min Motor power - 1.50 kW Voltage - 400 V / 50 Hz Dimension - 1050 / 650 mm Weight - 420 kg Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobil
