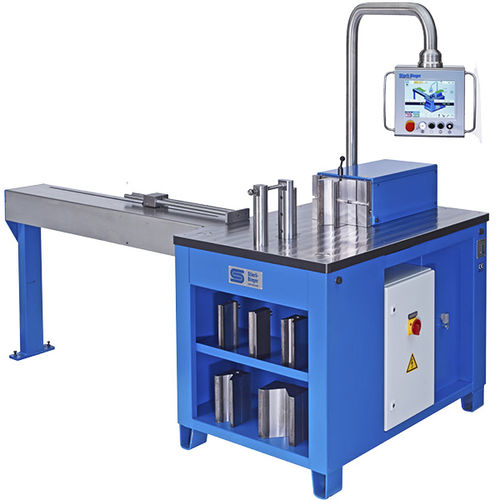

Shipyard bending machine 820 CNC-W

hydraulicprofile

The Stierli-Bieger 820 CNC/W bending centre is a very efficient system that can be equipped with a modern 1 or 2-axis control. The operator can program the system very easily as the screen leads him through the dialog. The required bending angle and stop dimensions can be programmed. The material-related spring back is calculated from bending tables which are saved in the control system and can be adapted or extended as required. In addition, the length before bending and the stop positions are calculated automatically. You can save 100,000 programs with 20 different bends each. Fast and fine speeds are already set in both axes. The 200 mm tool holder and the strong pin with a diameter of 80 mm enables versatile use and easy fitting of simple tools. Tools that can be changed easily and quickly are used for bending. The very large working plate ensures effective positioning of very large bent parts. The special oil-lubricated guided cylinder requires no maintenance and no open guide! The foot pedal is used to start the bending operation. Working power - 82 to / 820 kN Tooling height - 300 mm / 11.8" (inch) Bending capacity flat - 300 / 20 (30) mm Pipe bending - 3/8" - 3.0" Control - CNC Control Program memory - 100'000 Measuring precision - +/- 0.1° Cylinder stroke - 350 Smallest U-bend with narrow section punch - 65 mm (auf Wunsch z.B 50 mm oder kl Cylinder speed - 0- 0.6 m/min stufenlos Motor power - 3.5 kW Hybridhydraulik Voltage - 3x400 V / 50 Hz (andere Spannungen Dimension - 1960 x 1010 mm Weight - 2200 kg Color - Blau Installation - mobil
