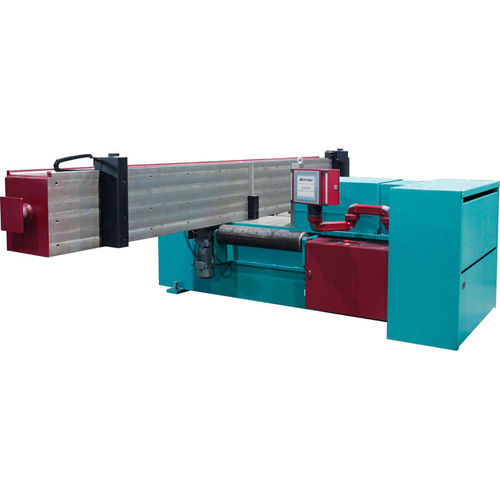

Shipyard bending press 2200 NC+

hydraulicNC

The “2200 NC+ hydraulic horizontal press can be relied upon to carry out all bending and straightening tasks in heavy steel construction, vehicle construction and steel service centres. The straightening and bending process can be carried out quickly and precisely. The operator is assisted by the straightforward NC+ control system with fine stroke adjustment. Up to 200 bending and straightening programs can be created, in which the movements of powered support rollers or powered conveyor belts (e.g. 2 x 12 m) can be programmed. In automatic mode, beam machining (e.g. pre-tensioning of beams) can therefore be carried out economically. Their versatility makes these machines an indispensable aid in steel construction companies and increases cost-effectiveness and process reliability: Cambering (pre-tensioning, cambering) of steel beams Straightening and bending steel beams Straightening of steel profiles (L profiles, T profiles, I profiles, Z profiles, U profiles, rail profiles, special profiles) Straightening of welded parts and welded structures Straightening of steel plates and flame-cut parts Heavy form bending work (work with heavy v-blocks or dies) Working power - 220 to / 2200 kN Tooling height - 600 mm / 23.62" (inch) Straightening capacity - HEA/HEB 600 Pipe bending - 4" Control - NC control Program memory - 200 Measuring precision - +/- 0.1 mm Cylinder speed - 0 - 0.6 m/min stufenlos regelbar Motor power - 18.5 kW Voltage - 3x400 V / 50 Hz (andere Spannungen Weight - 18'000 mit 8m Richtbalken Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobil Bending and straightening of very large pipes
