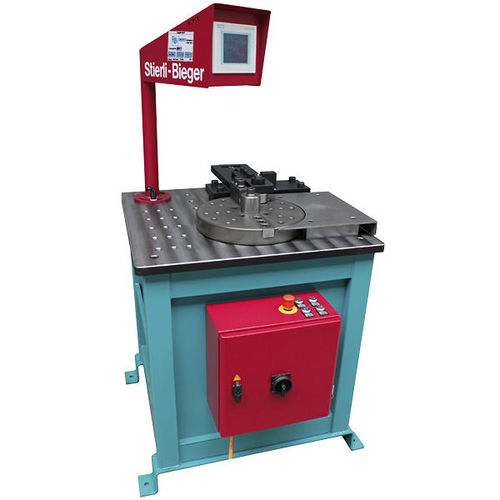

Shipyard bending machine 5000 CNC

hydraulicbarprofile

The Stierli-Bieger RADIAL 2500 CNC is a very efficient system that is equipped with a modern touchscreen colour display and 2-axis control. The operator can program the system very easily. 200 programs each with up to 20 bends per program can be saved. Other programs can be swapped in via an interface. The machine can be operated with a manual or programmable length stop. The required bending angle can be programmed directly. The bending angle and stop positions in the program can be adjusted at any time in +/- 0.1° (+/- 0.1 mm) steps to offset material-related tolerances. The very strong radial bending machine is designed in such a way that a wide range of tools can be set up very easily. The Stierli-Bieger Radial can be used with large radii, arch segments, bends over 90°, spirals, enclosed shapes and many other applications. You can achieve the high hourly output for 180° bends using the digital angle preselection with basic compensation and the automatic spring-back adjustment. Operation is by hand or foot switch. The radial bending machine is characterised by its ease of operation, low tool costs and high repeat accuracy. It is suitable for bending steel, copper, aluminium and other materials. Find out about the numerous application of the STIERLI BENDING MACHINE for yourself. Tooling height - 100 mm Bending capacity flat - 100x20 / 40x30 (S235) Control - CNC Control Program memory - 200 Measuring precision - +/- 0.1° Voltage - 3 x 400 V / 50 Hz Dimension - 880 x 850 mm Weight - 950 kg Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobile
