Shipyard bending press 1300 HE - Rail

hydraulic

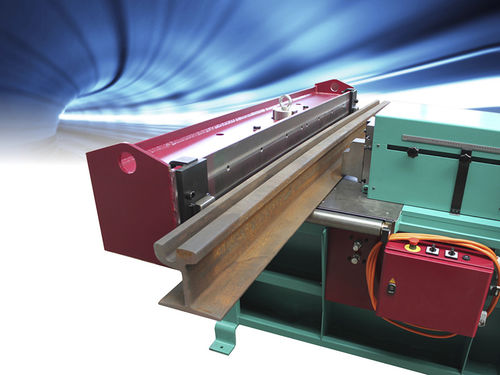

The “1300 HE - RAIL” stationary rail bending and straightening system is used for universal bending and straightening of smaller rails in rail and points construction. The horizontal design facilitates simple handling and transport of the rails. With the long cylinder stroke, the rails can be machined upright or horizontally. The tool height of 300 mm allows for straightening and bending of all standard rail profiles. As an option, the abutments can be set electro-mechanically to the rail profile required. With the quick-change tool system, the machine can be refitted for a different rail profile very quickly. The operator is assisted by the manual control with fine stroke adjustment which is easy to operate. An optional laser system supports the operator when bending and straightening the rails: Bending grooved rails Bending Vignoles rails Bending and straightening tongue rails (tongue rail straightening machine) Bending special rails Bending rails by folding Working power - 130 to / 1300 kN Tooling height - 300 mm / 11.81" (inch) Motor power - 7.5 kW Voltage - 3x400 V / 50 Hz Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobile CE conform - Speciality - Very good value for money for machining smaller rails
