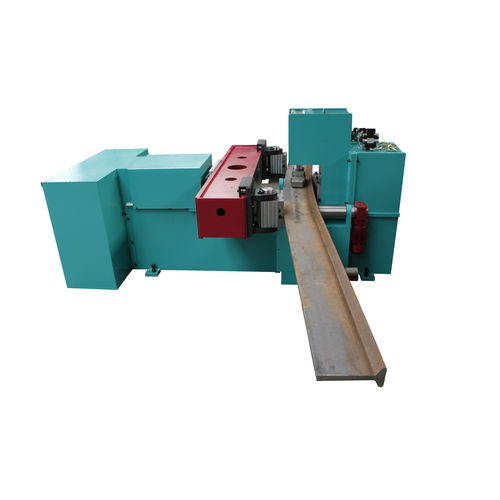

Shipyard bending press 2200 NC - SE

hydraulicCNC

The “2200 NC - SE” ship’s frame bending machine is designed for bending profiles for ship’s frames. As well as HP ship’s frames (HP profiles, Holland profiles or bulb flats), other profiles such as L and T profiles can be bent. The ship’s frames can be bent individually or in pairs. The direction of machining (S bends) can be switched without changing the bending tools. The bending process can be carried out quickly and precisely. The operator is assisted by the straightforward NC+ control system with fine stroke adjustment. Up to 200 bending and straightening programs can be created, in which the movements of powered support rollers can be programmed. In automatic mode, ship’s profiles can therefore be processed economically. The universal ship’s frame bending machine can be used for the following bending and straightening work: Bending ship’s frames (HP profile, bulb flats, Holland profile) single / double Bending T-profile, L-profile Edge bending of flat steel Bending of special profiles By resetting the tools, the machine can also be operated as a universal straightening and bending machine: Bending pipes up to 3” Bending flat steel with v-blocks Carrying out various types of straightening work Straightening of welded parts and welded structures Straightening of steel plates and flame-cut parts Heavy form bending work (work with heavy v-blocks or dies) The robust and heavy design of this ship’s frame bending machine guarantees precise bending results. The open design enables optimal part handling and loading of the machine using a factory crane or powered roller conveyor.
