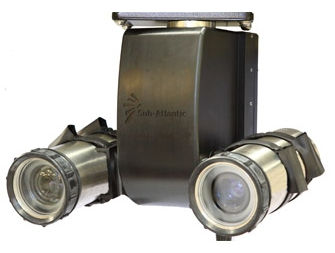

ROV underwater video camera mount 24 VDC & 110 VAC

articulated

These pan & tilt unit are used on a wide range of vehicle sizes from electric inspection class up to the largest cable plough. They provide a rugged and reliable alternative to hydraulic units. 24 Volts DC or 110 Volts AC Top Mounting Flange on Pan Shaft Low Backlash Self-Locking on Power Down Position Feedback Robust Design Adjustable Limit Switches Pressure Compensated Tested to 6000 msw / 20,0000 fsw Can be Inverted With feedback potentiometers and adjustable limit switches supplied as standard, these rugged units are the perfect choice for the positioning of industry standard subsea cameras and sensors. The gearing system is overrated to resist damage due to collisions. Standard voltage is 24 Vdc but an optional 110 Vac is also available with pin-out to suit wellhead TV camera systems. Pan & Tilts are oil filled and positively compensated, making them suitable for operation at extreme depth and can be supplied with a range of electrical connector types.
