Underwater video camera TUVS100IP

professionalfor yachtscolor

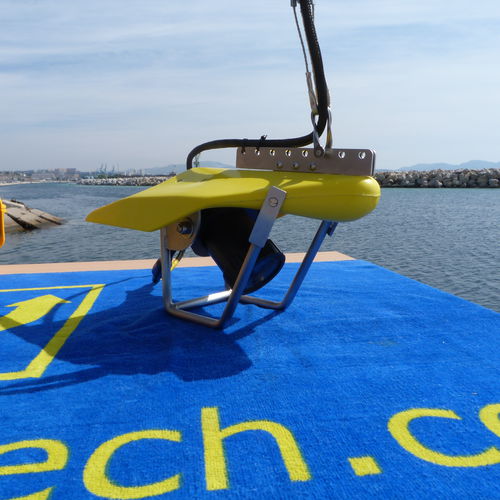

The towed video TUVS100IP has been specially developed for the acquisition of underwater images over long distances. Its integrated wing system allows its use at variable depths while ensuring maximum stability of the video. The depth of the camera varies according to the speed of the boat, the length of the cable and the weight of the unit. EQUIPMENT Umbilical: 50m sinking cable with Kevlar braid (dia. 6,3mm) + Dynema cable + HDPE protection sheath Extension on demand. Console characteristics Dimensions: W 470 mm x D 370 mm x H 180 mm Weight: 11.5 kg PC with shareable 17″ LCD screen integrated in a Pelicase IP65 Recorder: Built-in PC with 250 GB SSD (larger storage size available on request) Ports: 1 HDMI, 1 RJ45 and 3 USB Batteries : NiMH batteries, 24V – 4500mAh Characteristics towed wing Dimensions : L 327 mm x W 182 mm x H 182 mm Weight : 3 kg Description : Hydrodynamic vacuum wing Materials : Polypropylene + 316L stainless steel protection frame Camera position : Adjustable camera tilt angle (0-90°) Equipment Umbilicals: 50m flowing (Ø 6,3mm) with Kevlar braid + Dynema cable + HDPE protective sock Optional extensions.
