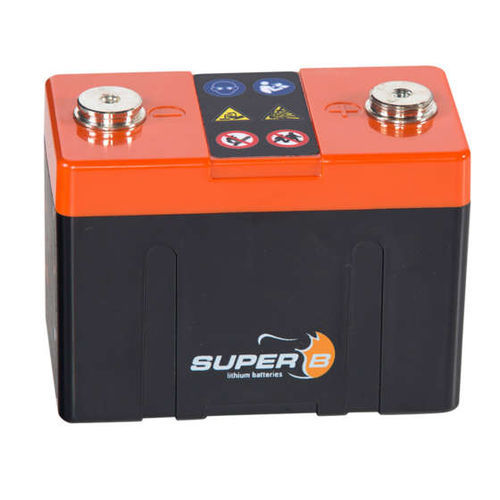

12 V battery ANDRENA 5
lithiumiron phosphatelead-acid

12 V battery - ANDRENA 5 - Super B Lithium Power B.V. - lithium / iron phosphate / lead-acid

Add to favorites

Compare this product

Characteristics

Voltage: 12 V
Storage system: lithium, iron phosphate, lead-acid
Load capacity: 5 Ah
Height: 84 mm
(3 in)
Width: 62 mm
(2 in)
Length: 114 mm
(4 in)
Weight: 850 g
(30 oz)

Description

Lightweight, high-performance, safe and reliable lithium power battery, especially developed for motorsports. This battery equals a lead-acid battery of 10 to 12Ah, provided the alternator’s maximum current doesn’t exceed the battery’s maximum charge current of 19A. Designed in a standard rally casing. Suitable for 12V systems and for use in extreme environments. CHARGE & DISCHARGE SPECIFICATIONS Charge method CCCV Charge voltage 14.3V - 14.6V Max. charge current 19A End of discharge voltage 8V Discharge current continuous 80A Discharge pulse current 255A (51C) (1 sec) TEMPERATURE SPECIFICATIONS Charge temperature 0°C to 55°C / 32°F to 131°F Discharge temperature -30°C to 55°C / -22°F to 131°F Storage temperature -40°C to 60°C / -40°F to 140°F COMPLIANCE SPECIFICATIONS Certifications CE, UN 38.3, UL 1642 (Cells) Shipping classification UN 3480 GENERAL SPECIFICATIONS Battery designation 4IFpR27/66-2
