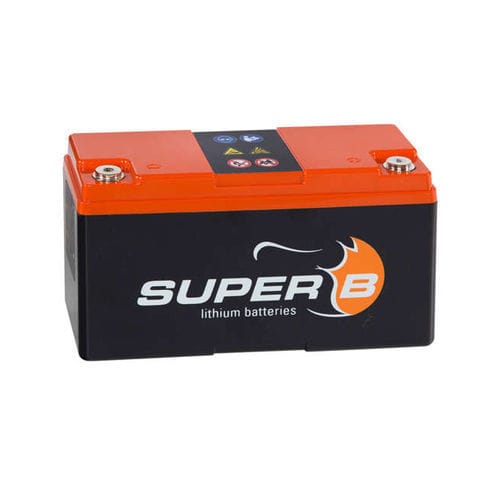

12 V battery ANDRENA 15

lithiumiron phosphatelead-acid

Lightweight, high-performance, safe and reliable lithium power battery, especially developed for motorsports. This battery equals a lead-acid battery of 40 to 60Ah, provided the alternator’s maximum current doesn’t exceed the battery’s maximum charge current of 52A. Designed in a standard rally casing. Suitable for 12V systems and for use in extreme environments. ELECTRICAL SPECIFICATIONS Nominal capacity 15Ah Open circuit voltage 13.2V Self-discharge 1000 (at 10C discharge, 100% DoD) EqPb (Equals Lead acid battery) 40 to 60Ah Voltage 12V MECHANICAL SPECIFICATIONS Dimensions (LxWxH) 249 x 96 x 141mm / 9.80” x 3.78” x 5.55” Weight 2.9 kg / 6.4lbs Case material PC - ABS Ingress protection IP69 Cell type / Chemistry Cylindrical - LiFePO4 CHARGE & DISCHARGE SPECIFICATIONS Charge method CCCV Charge voltage 14.3V - 14.6V Max. charge current 52A End of discharge voltage 8V Discharge current continuous 240A Discharge pulse current 708A (47C) (1 sec) TEMPERATURE SPECIFICATIONS Charge temperature 0°C to 55°C / 32°F to 131°F Discharge temperature -30°C to 55°C / -22°F to 131°F Storage temperature -40°C to 60°C / -40°F to 140°F COMPLIANCE SPECIFICATIONS Certifications CE, UN 38.3, UL 1642 (Cells) Shipping classification UN 3480 GENERAL SPECIFICATIONS Battery designation 4IFpR27/66-6
