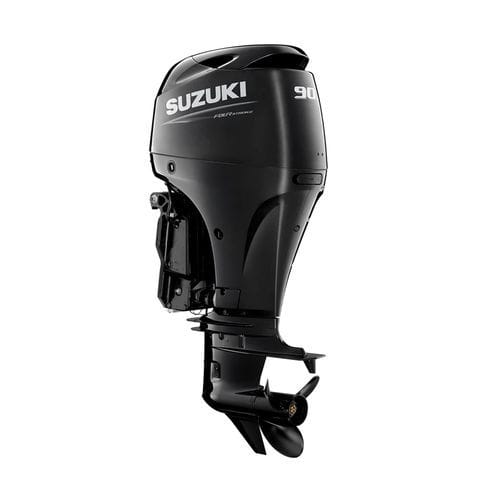

Outboard engine DF90A

gasolineboatingprofessional vessel

TOUGH. DEPENDABLE. QUIET. The lightest, most compact and fuel-efficient outboard in its class with a large reduction gear ratio leading to a powerful torque for quick acceleration and great top speed. Lean Burn control system Suzuki's Lean Burn Fuel Control Technology predicts fuel needs according to operating conditions, then delivers the optimum fuel/air mixture to the engine resulting in greater fuel economy. Offset drive shaft The offset drive allows us to make our outboard engines smaller by moving the outboards centre of gravity forward, improving weight distribution, power output, balance and reduces vibration. Self-adjusting timing chain Simple, effective and maintenance free timing chain that runs in an oil-bath so it never needs lubricating and equipped with a hydraulic tensioner so it remains properly adjusted at all times. Tilt limit systems Protects the boat from damage when tilting the outboard, acting as both a tilt limit and trim sender, the step-free, continuous system allows you install the outboard on almost any boat. DIMENSIONS AND WEIGHT Recommended transom height: - L: 508mm (20in) X: 635mm (25in) Weight: - L: 156.0kg X: 160.0kg Bore x Stroke: - 75 x 85mm Propeller Selection (pitch): - 13" - 25" ENGINE SPECIFICATION Starting System: - Electric Engine Type: - DOHC 16 valve Steering: - Remote Oil Pan Capacity: - 4.0L Fuel Tank Capacity: - 25L (optional) Ignition System: - Fully-transistorised Alternator: - 12V 27A
