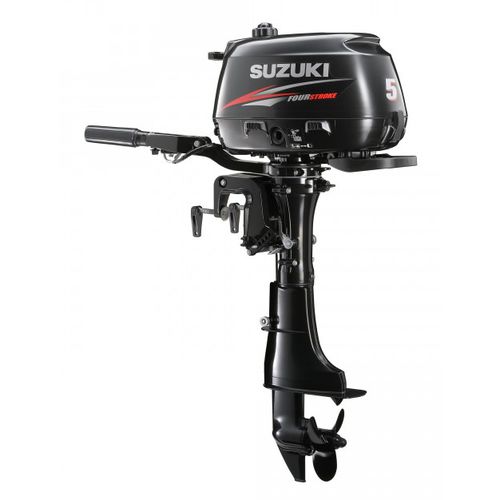

Outboard engine DF5A

gasolineboating4-stroke

Recommended transom height: - S:381mm (15in) L: 508mm (20in) ENGINE SPECIFICATION Starting System: - Manual Engine Type: - OHV Fuel Delivery System: - Carburettor Full Throttle Operating Range: - 4,500 - 5,500 Steering: - Tiller Oil Pan Capacity: - 0.7L Fuel Tank Capacity: - Integral 1.0L Ignition System: - Digital CDI Alternator: - 12V 6A (optional) Engine Mounting: - Bushing Type Trim Method: - Manual Gear Ratio: - 1.92:1 Gear Shift: - F-N-R Exhaust: - Above Prop Exhaust COMPACT. PORTABLE. LIGHTWEIGHT. This compact and lightweight outboard is incredibly versatile, with class-leading technical innovation and a simple and effective ergonomic design. Compact dimensions and stylish design make this outboard genuinely portable and easy to install and operate. The new fuel and lubricating systems give you the added convenience of being able to store the outboard either on its port or starboard sides or front, without worrying about leakage or flooding.
