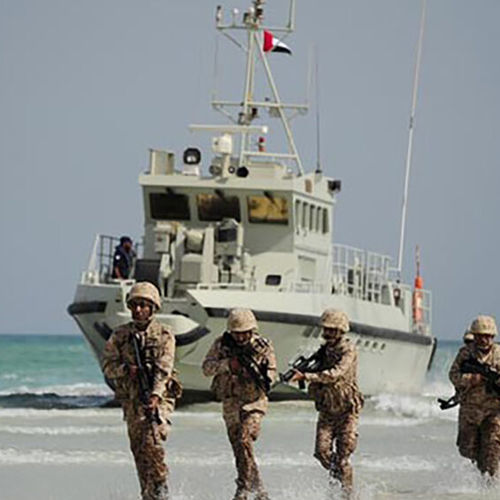

Patrol boat 24 M FAST GUN
military boatinboard

patrol boat
patrol boat
patrol boat
patrol boat
patrol boat
patrol boat
Add to favorites
Compare this product


Characteristics

Type
patrol boat, military boat
Motor type
inboard
Length

24.25 m
(79'06" )

Maximum width

5.1 m
(16'08" )

Draft

1.11 m, 1.18 m
(3'07" , 3'10" )

Motor power

2,000 ch
(2,000 hp)

Cruising speed

Min.: 32 kt

Max.: 35 kt

Passenger capacity

42 unit

Fuel capacity

5,000 l
(1,321 gal)

Description

UAE Navy has received a six boat series of 24m vessels equipped with 27 mm gun. The vessels are built in co-operation between Swede Ship Marine who built the first in the series and Abu Dhabi Ship Building that builds the series. The wheelhouse include a combat station in the aft of the wheelhouse. Machinery Main engines: 2 x MTU 12V 2000 M90, 2 x 992 kW Reduction gears: 2 x ZF BU 1900 Water jets: 2 x Rolls Royce FF550 Gen set: GMPP 2 x 48 kVA Bridge system Multi-function work station (3x) ECDIS GPS (2x) Magnetic compass Echo sounder Doppler log Weather station WAIS CCTV Navigation radar Communication system VHF (GMDSS) MF/HF (GMDSS) Navtex (GMDSS) VHF UHF HF Other equipment HVAC system NBC system /detection GID 3) Weapon system Oto Melara 12.7 mm Rheinmetall 27 mm MLG 27
