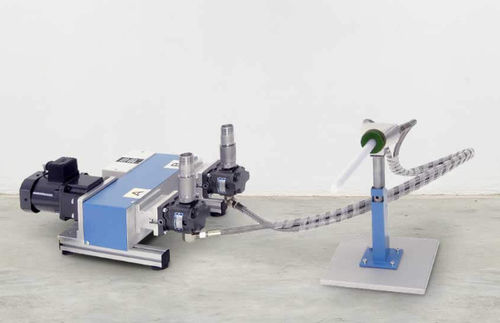

Mixing and dispensing machine MDM 3

Entry-level model in the MDM series of compact dosing and mixing systems Small volume dosing with a fixed flow rate of approx. 0.7 l/min Fixed mixing ratio 100:50 or 100:100 Inlet from higher lying manufacturer's drums Static mixer If you are looking for a compact dosing and mixing system for a maximum of 2 flowable components, you should take a closer look at the MDM series. With this range of systems, outputs of 0.05 l/min up to 6.5 l/min can be achieved. Small quantities precisely metered The MDM is characterized by high mixing ratio accuracy, ease of maintenance and the easy, functional operation via the Siemens LOGO control (from MDM 5) or a control via touch panel (Simatic S7) with the MDM plus. The basic equipment includes plastic containers which are filled manually and are not pressurized with compressed air. Alternatively, the material can also be supplied via stainless steel containers or higher positioned containers. The dosing is done by means of high-precision gear pumps. Possible settings of the mixing ratio depend on the selected machine equipment.
