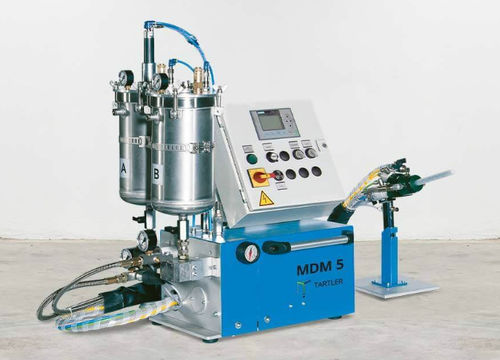

Mixing and dispensing machine MDM 5

Compact table-top unit from the MDM series of dosing and mixing systems Small volume dosing with a flow rate of up to 1.5 l/min Infinitely adjustable mixing ratio 5 l stainless steel container Compressed air required Power connection: 230 volts Integrated pneumatic agitator Hose length possible: 1 - 5 m Purge air Adjustable potlife timer and shot timer If you are looking for a compact dosing and mixing system for a maximum of 2 flowable components, you should take a closer look at the MDM series. With this range of systems, outputs of 0.05 l/min up to 6.5 l/min can be achieved. Small quantities precisely metered The MDM is characterized by high mixing ratio accuracy, ease of maintenance and the easy, functional operation via the Siemens LOGO control (from MDM 5) or a control via touch panel (Simatic S7) with the MDM plus. The basic equipment includes plastic containers which are filled manually and are not pressurized with compressed air. Alternatively, the material can also be supplied via stainless steel containers or higher positioned containers. The dosing is done by means of high-precision gear pumps. Possible settings of the mixing ratio depend on the selected machine equipment.
