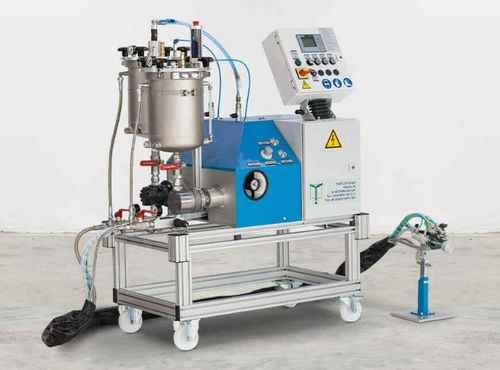

Mixing and dispensing machine MDM 6

Largest dosing and mixing system of the compact MDM series Flow rate of up to 3.5 l/min Infinitely adjustable mixing ratio 10 l stainless steel container Compressed air required Power connection: 400 volts Hose length possible: 3 - 5 m Adjustable potlife timer and shot timer Mobile frame Purge air Integrated pneumatic agitator Recirculation of the components If you are looking for a compact dosing and mixing system for a maximum of 2 flowable components, you should take a closer look at the MDM series. With this range of systems, outputs of 0.05 l/min up to 6.5 l/min can be achieved. Small quantities precisely metered The MDM is characterized by high mixing ratio accuracy, ease of maintenance and the easy, functional operation via the Siemens LOGO control (from MDM 5) or a control via touch panel (Simatic S7) with the MDM plus. The basic equipment includes plastic containers which are filled manually and are not pressurized with compressed air. Alternatively, the material can also be supplied via stainless steel containers or higher positioned containers. The dosing is done by means of high-precision gear pumps. Possible settings of the mixing ratio depend on the selected machine equipment. Information about possible components and configurations can be obtained from our sales team. Basic Equipment Suitable for liquid synthetic resins of polyurethane, epoxy and silicone Output ranges within 0.05 l/min to 6.5 l/min can be specified Adjustable mixing ratio (from MDM 4) Static mixer or disposable rotary plastic mixer (from MDM 4) possible
