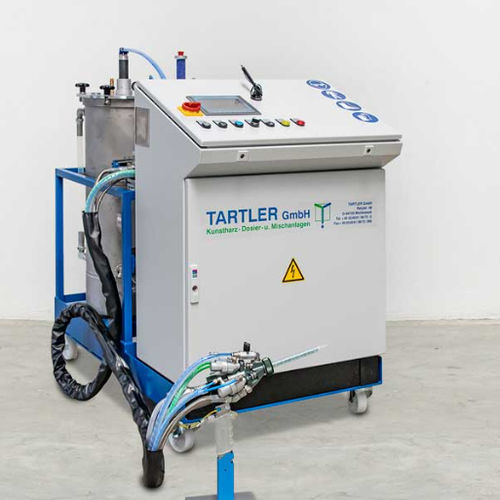

Mixing and dispensing machine MDM plus

The MDM plus fills the gap between MDM 6 and NODOPUR plant Output and mixing ratio adjustable via touch panel Control - Simatic S7 1214C (7" touch panel) 60 l stainless steel tank Minimum sensors for storage tanks Small recirculation with pneumatic ball valves and monitoring Pot life alarm and shot time adjustable If you are looking for a compact dosing and mixing system for a maximum of 2 flowable components, you should take a closer look at the MDM series. With this range of systems, outputs of 0.05 l/min up to 6.5 l/min can be achieved. Small quantities precisely metered The MDM is characterized by high mixing ratio accuracy, ease of maintenance and the easy, functional operation via the Siemens LOGO control (from MDM 5) or a control via touch panel (Simatic S7) with the MDM plus. The basic equipment includes plastic containers which are filled manually and are not pressurized with compressed air. Alternatively, the material can also be supplied via stainless steel containers or higher positioned containers. The dosing is done by means of high-precision gear pumps. Possible settings of the mixing ratio depend on the selected machine equipment. Information about possible components and configurations can be obtained from our sales team. Basic Equipment Suitable for liquid synthetic resins of polyurethane, epoxy and silicone Output ranges within 0.05 l/min to 6.5 l/min can be specified
