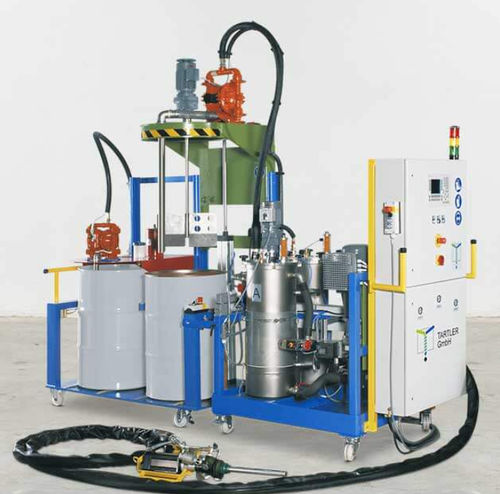

Mixing and dispensing machine NODOPUR VS AR

Controlled dosing and mixing system of the NODOPUR series with automatic refilling for 200 l containers With a flow rate of up to 13 l/min Electric stirrer Manual control box Refill station with pumps, agitator and lifting device (can be separated from dosing system) Heated A-component If the customer specs for the compact MDM series can no longer be fulfilled, or the desired equipment exceeds the existing capabilities, the NODOPUR Series can be deployed. The basic model is mounted on a mobile frame with integrated sump tray and is equipped with 40, 60 or 100 l containers. Of course, all other container sizes can also be considered. The NODOPUR can be manufactured as a 1-component dosing station, but can also be built as a mixing unit with up to 8 components. The system is controlled via a Siemens touch panel on which the PLC programming is visualized. Our internal programming department designs the function and operation of each machine according to customer requirements or optimizes it for the individual process. In volume flow-controlled systems, the mixing ratio is regulated in the control system in very short cycle times. In systems without volume flow control, the drives also receive their setpoint speeds from the PLC after the system has been calibrated. Information about possible components and configurations can be obtained from our sales team. Basic equipment Suitable for liquid synthetic resins of polyurethane, epoxy and silicone Flow rates can be specified within 0.1 to 100 l/min Adjustable mixing ratio (self-regulating on request) Static mixer or disposable rotary plastic mixer possible
