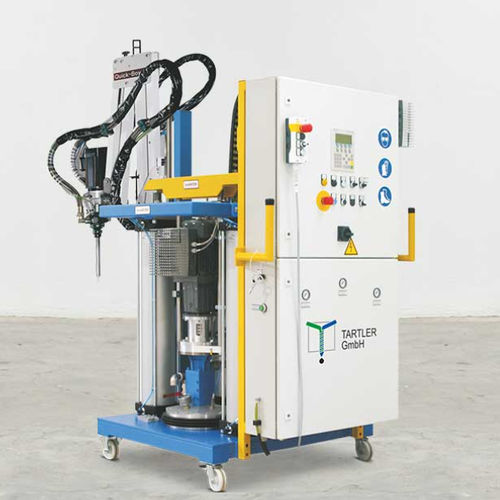

Two-component mixing and dispensing machine NODOPOX 50

two-component mixing and dispensing machine
two-component mixing and dispensing machine
Add to favorites
Compare this product


Characteristics

Options
two-component

Description

Basic model of the dosing and mixing systems of the NODOPOX series for pasty components With a flow rate of up to 5 kg/min 2 components Suitable for cylindrical 50 l drum Mixing ratio from 100:30 to 30:100 Handling arm Follower plate venting via ball valve Where pasty or highly viscous, no longer self-leveling components are required, they are processed with follower plate systems. As there are different cylindrical containers available from the material manufacturers, the follower plates are selected according to the container size. The material is received directly from the containers. The most common containers are 20 l hobbocks, 50 l and 200 l steel drums. The configuration of a NODOPOX usually consists of a mobile basic model, which is supplemented by modules from the existing module system. The systems can be designed as 1C, 2C systems or for more components. The mixing ratio is defined via the integrated Siemens control in the operating panel. The required program modules are individually compiled in the PLC by our programmers and adapted to the application process. Pot life, shot quantity and, in the case of volume flow-controlled systems, also the mixing ratio, for example, can be set via the machine control on the touch screen. In order to avoid process interruptions during drum change, we developed buffer containers in 2009 which are automatically filled by refill stations and thus ensure uninterrupted dosing.
