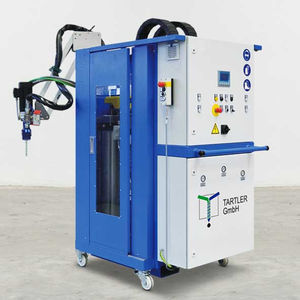

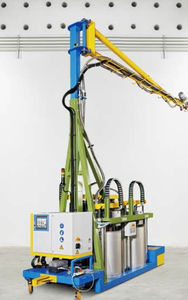

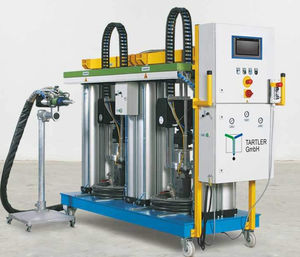

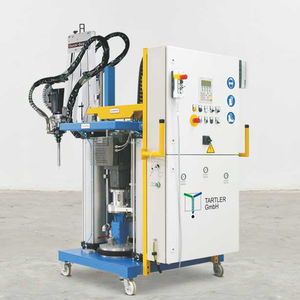

Two-component mixing and dispensing machine NODOPOX 200 VS

two-component mixing and dispensing machine
two-component mixing and dispensing machine
Add to favorites
Compare this product


Characteristics

Options
two-component

Description

Controlled 2K dosing and mixing system of the NODOPOX series Suitable for highly viscous and pasty synthetic resins With a flow rate for paste of up to 5 kg/min and adhesive up to 20 kg/min Automatic control via flow measurement of the components For 200 l container Where pasty or highly viscous, no longer self-leveling components are required, they are processed with follower plate systems. As there are different cylindrical containers available from the material manufacturers, the follower plates are selected according to the container size. The material is received directly from the containers. The most common containers are 20 l hobbocks, 50 l and 200 l steel drums. The configuration of a NODOPOX usually consists of a mobile basic model, which is supplemented by modules from the existing module system. The systems can be designed as 1C, 2C systems or for more components. The mixing ratio is defined via the integrated Siemens control in the operating panel. The required program modules are individually compiled in the PLC by our programmers and adapted to the application process. Pot life, shot quantity and, in the case of volume flow-controlled systems, also the mixing ratio, for example, can be set via the machine control on the touch screen. In order to avoid process interruptions during drum change, we developed buffer containers in 2009 which are automatically filled by refill stations and thus ensure uninterrupted dosing.
