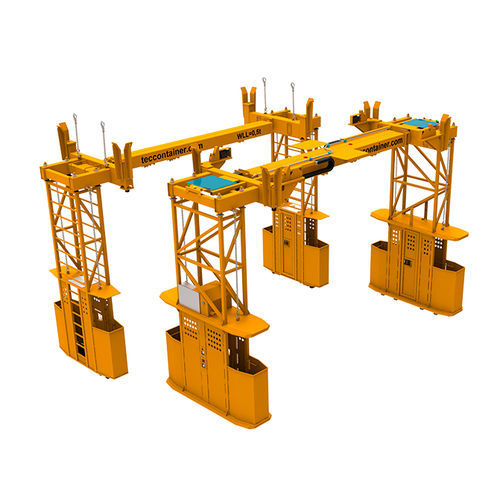

Container spreader lashing cage BA-323

The model BA-323 is a lashing cage gondola type, designed to improve the safety of the stevedores, to facilitate the access to the twistlocks, and to reduce the time used for unloading the vessels. The main advantage of this type of safety cage is that, by having a very small space between gondolas, the operational height of the basket is maximized, thus being able to serve higher boats. Several versions exist, all of them share the feature of two cabins , one at each side of the structure: Equipped with extra safety system - chains Fixed (20’, 40’, 45’) or Telescopic (20’- 40’- 45’) Safety doors Parking stand as an Opt Ready to be delivered inside a 40ft FCL Description Safety factor 10 (MBL = SWL x 10) Safe working load (SWL) = 0.5t. Designed for up to two stevedores with complete equipment per cabin. Free height 2100mm. Guard-rails and Hand-rails along the whole perimeter ¡¡ All doors for stevedores open inwards and are equipped with hinges with springs, autoclose & autolock system. Anti-slip floor with drainage spots. 2 anchor points according to EN795 per cabin placed behind the working positions for fall protection Adequate for use at temperature to -20ºC y relative humidity up to 100%. Painting system: Shot blasting Sa 2.5 + Shop-primer Zinc Sylicate 30mu + Top Coating Epoxi 150mu Raised floor to avoid entrapment.
