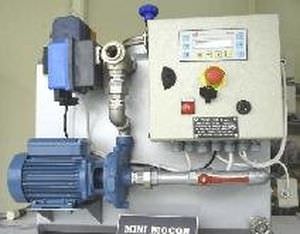

Wastewater treatment system MINI-BIOCON

for ships

SYSTEM CHARACTERISTICS • VOLTAGE 1 x 220V (50 or 60Hz), 380V or 440V • POWER 1,3KW WITH SEA WATER PUMP, 8A RATED CURRENT (at 220V, 4A at 400V) • WHEN SUPPLIED FROM HOLDING TANK THEN NEEDED >TRANSFER PUMP SELF PRIME, 1 1/2KW OR NON SELF PRIME CHOICE FROM 1X220V OR 3X380V >3 LEVEL SENSOR (START-STOP AUTO, ALARM) • HYDRAULIC CAPACITY: 2.500 LITRES /DAY or 4000 with black and grey waters • ORGANIC LOAD: 1,32 KG BOD5/DAY • DIMENSIONS: L=660 (800 with chlorine pump) mm W=600mm H=720mm • WEIGHT EMPTY: 110 KG • WEIGHT IN OPERATION: 200KG • CHLORINE CONSUMPTION (12% CONCENTRATION) 1 LITER PER 4 CUBIC METRE OF SEWAGE TREATED • CONSTRUCTED FROM SS316(TANK,PUMPS,PIPING) • TRANSFER PUMP+ LEVEL SENSOR CONTROLLED FROM MB’S ELECTRIC PANEL. • DISPLAY SCREEN WHERE ALL PARAMETERS CAN BE ADJUSTED CONTROLLED AND MONITORED • FILTER HOUSING Φ200,Η=560mm(if installed elsewhere) • EFFLUENT CHARACTERISTICS COMPLYING WITH MEPC.159(55) • DNV CERTIFIED
