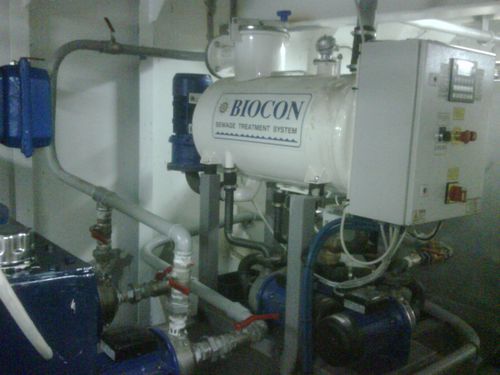

Wastewater treatment system BIOCON I

for ships

SYSTEM CHARACTERISTICS System capacity: 7.840 liters/Day Organic load capacity: 4,05 kg BOD5/Day Overall dimensions: 1320x840x1300 mm Dry weight: 280kg Operation weight: 360kg Voltage: 3x220, 380, 440V, 50Hz or 60Hz other to be requested Power input: 3,5KW + 0,75KW transfer pump +0,75KW sludge pump Max Power absorbed in auto cycle: 9A at 380V All piping and tanks made from SS316, bronze type valves Electrostatic powder coated Hydraulic connections 11/2" sewage supply from transfer pump or directly to toilets network 11/2" sea water supply 1" from sludge outlet to sludge tank 11/4" from sludge tank to Biocon inlet 11/2" outlet to overboard 1 1/2" vent Electrical connections Power supply From Biocon panel To transfer pump if there is To sludge pump To holding tank level sensor if there is To sludge tank level sensor
