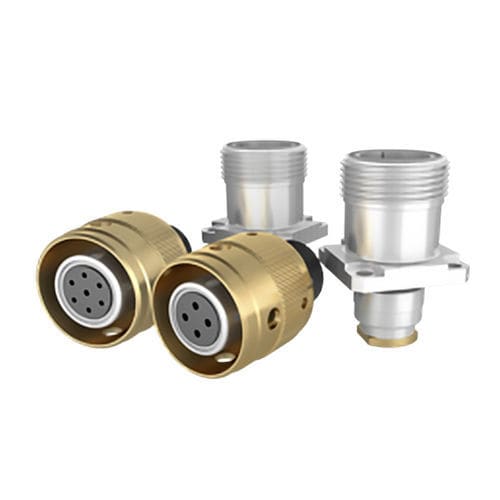

Fiber optics connector Omega

electricunderwater1 contact

​Low optical loss (<0.2db), utilizing industry standard self-aligning ferrules Interchangeable fiber and electrical contacts Singlemode and multimode fiber capability​ Teledyne lmpulse-PDM's Omega Series offers any combination of multi-mode or single-mode optical ways and 16 AWG electrical ways from a single way through to seven ways. Electrical pins are part of the CCP and the mating sockets are part of the FCR, CCR or BCR. Connectors populated with both electrical and optical ways will be populated in a standard Teledyne lmpulse-PDM format to facilitate interchangeability between batches. This information can be provided at the time of quotation. The connectors are offered, as standard, in Stainless Steel to BSEN10088 Grade 1.4404 (316L) which is electro-polished to remove surface contamination, thus improving resistance to corrosion. Connector bodies can also be manufactured, by special arrangement, in other materials either to address specific anti-corrosion requirements or to improve the ratio of size to depth rating. The engaging nuts are normally manufactured in Naval Brass to UNS C46400. CCP connectors can be supplied unterminated but it is usual for Teledyne lmpulse- PDM to carry out the termination. As cable types containing optical fibers are both varied and complex, their termination is often unique to each type. Teledyne lmpulse- PDM is able to offer, from stock, cable for either single mode or multi-mode operation. Cable can also be customer specified, but details should be furnished with the request for quotation so that Teledyne lmpulse-PDM can consider any design implications.
