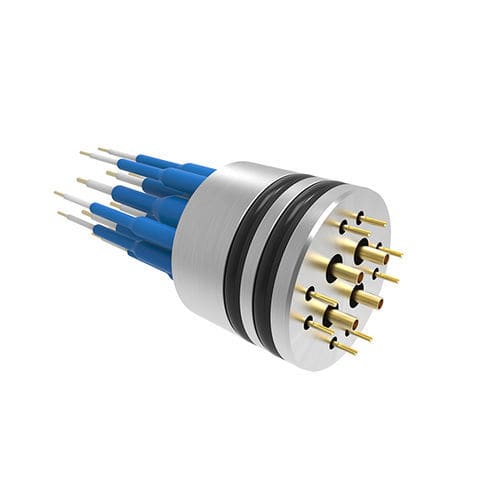

Electric penetrator 111 series

underwater

Teledyne DGO's penetrators are engineered using industry-leading glass-to-metal sealing technology, which provides a reliable hermetic compression seal to the conductors and the penetrator body. DGO's penetrators are offered in various water blocking, voltage isolation and mounting arrangements. Key Features: Primarily used in the oil and gas market, the 111 Series is designed for extreme conditions Glass-to-metal seal pressure barrier Pressure rating up to 30,000 psi​ Benefits: Ideal for instrument housings in extremely difficult environments, such as downhole applications in oil and gas wells. Redundant sealing for an extremely reliable design Vibration and shock qualified for superior performance in downhole environment Specifications ​Insulation Resistance - ​ 5 Gohms at 500 VDC ​Voltage Ratings - ​500 VDC ​Current Ratings - 5-7 amps ​Temp Range - 446°F ​Helium Leakage - ​Less than 1 x 10-8 cc/sec ​Hydro Pressure Resistance - ​30,000 psi ​Gas Pressure Tested - ​15,000 psi (per API 6A) Applications ​Subsea sensors Subsea electronics modules Chemical injection valves Erosion/corrosion monitoring Flow meters​
