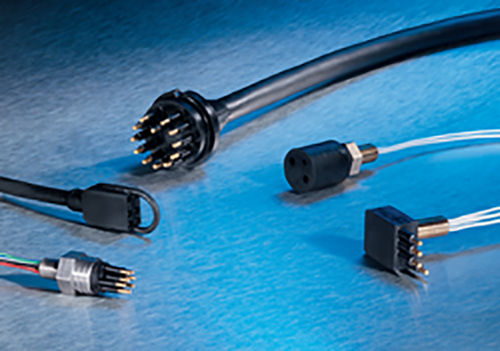

Electric connector IL/BH/OM

circular2 contacts4 contacts

Molded neoprene wet pluggable connector for light to medium duty applications Up to 10,000 PSI, mated. Bulkhead connector design open face pressure rated to 5000 PSI. ​​Available in circular ( IL/BH), low profile ( LPIL/ LPBH), mini-circular (MIL/MBH), mini low profile (LPMIL/LPMBH) and micro mini (MCIL/MCBH) styles, and water-blocked styles. Molded neoprene inline connectors supplied on 24" length of neoprene cable (see specs). Custom lengths and cable types available on request. Some polyurethane molded inline connectors also available. Bulkhead connectors available with brass or stainless steel bodies and 12" of #18 AWG type E Teflon inboard leads (micro mini connectors have either #20 AWG (2-4/10-16 contact) or #22 AWG (5-8 contact)). Delrin locking sleeves available for circular, mini circular and micro mini styles. Micro mini style bulkheads have male locking sleeve thread as part of body. Field installable connectors available for some styles with optional overmold boot. Contacts gold plated per MIL-G-45204.​ ​Waterblock available. MCIL/MCBH. Locking sleeves available: MCDLS-F (Female), and MCDLS-M (Male) Specifications ​Wet Pluggable Series: Field installable connectors available for some styles with optional overmold boot. Up to 750 VDC. Up to 10,000 PSI pressure rating in mated condition (see specs). Bulkhead connectors open face pressure rated to 5,000 PSI. Contacts gold plated per MIL-G-45204. Micro Mini Wet Pluggable Series: Up to 750VDC. Up to 10,000 PSI, mated. Bulkhead connector design open face pressure rated to 5000 PSI. Contacts gold plated per MIL-G-45204.
