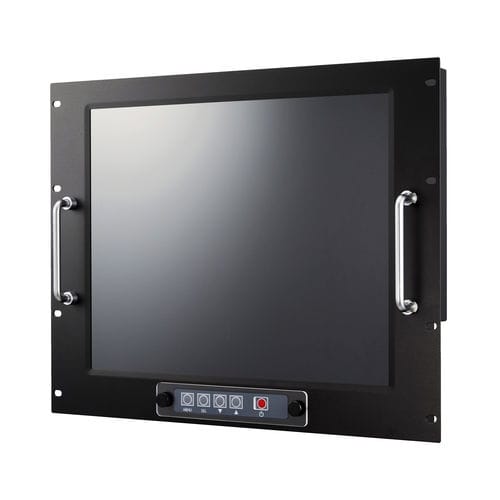

Boat display TIM-170NH

for shipsfor yachtsmulti-function

This specification defines the descriptions for the TIM-170NH TFT LCD Monitor. TIM series is developed and designed for use in operator display such as Industrial and Marine applications. TIM series are subject to strict quality tests performed both internally and by independent Classification societies in the World such as BV, LR, NK and etc. KEY FEATURES Mambrane OSD control DVI-D, RGB Input Signal Console, Stand (Desktop) Mounting Type Aluminum chassis (Front) SPECIFICATION GENERAL FEATURE Section - Specifications Display type - LED Backlight, Wide TFT LCD Resolution - 1280 x 1024 @60Hz Aspect Ratio - 5:4 Brightness - 350cd/㎡ Contrast Ratio - 800:1 Response Time - 30ms Active Area - 337.920 (H) x 270.336 (V) mm Pixel Pitch - 0.264 (H) x 0.264 (V) mm Viewable Angle - 160°RL / 140°UD Support Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76 Hz (Vertical) Detectable Resolution - 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024 Connector Types - 1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) Power Specification - 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet) Power Consumption - 40W (MAX) Dimension - 444 (W) x 71.5 (D) x 353 (H) mm Weight - 7.56kg Temperature Range - Operating : 0℃ to +50℃ Non-Operating : -20℃ to +60℃ Humidity Range - Operating : up to 95% Non-Operating : up to 95%
