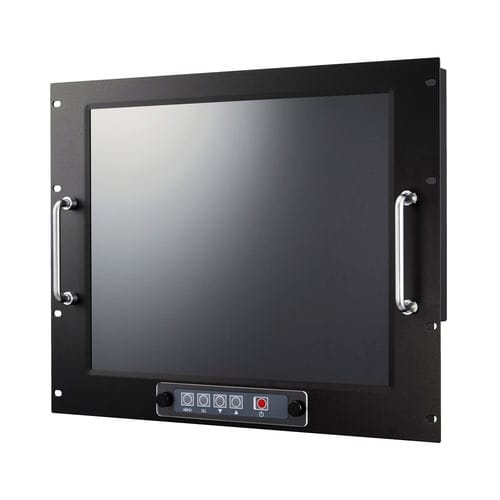

Boat display TIM-231NH

for shipsfor yachtsmulti-function

This specification defines the descriptions for the TIM-231NH TFT LCD Monitor. TIM series is developed and designed for use in operator display such as Industrial and Marine applications. TIM series are subject to strict quality tests performed both internally and by independent Classification societies in the World such as BV, LR and etc. KEY FEATURES 23.1 inch TFT active-matrix liquid crystal panel High Quality TFT with LED Backlight 1600 x 1200 resolutions Digital DVI-D, Analog RGB Input Signal Console Mounting Type Power range : 110VAC~230VAC 50/60Hz SPECIFICATION Display type - LED Backlight, Wide TFT LCD Resolution - 1600 x 1200 @60Hz Aspect Ratio - 4:3 Brightness - 500cd/㎡ Contrast Ratio - 600:1 Response Time - 12ms Active Area - 470.4 (H) x 352.8 (V) mm Pixel Pitch - 0.294 (H) x 0.294 (V) mm Viewable Angle - 170°RL / 170°UD Support Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76 Hz (Vertical) Detectable Resolution - 640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200 Connector Types - 1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) Power Specification - 110VAC~230VAC 50/60Hz (IEC Standard AC Inlet) Power Consumption - 80W (MAX) Dimension - 626 (W) x 89.8 (D) x 539 (H) mm Weight - 18.49kg Temperature Range - Operating : 0℃ to +50℃ Non-Operating : -20℃ to +60℃ Humidity Range - Operating : up to 95% Non-Operating : up to 95% Option - Dimming : 3~100% Test Approval - IEC 60945, IACS E-10 Certification - BV, LR Warranty - 24 months
