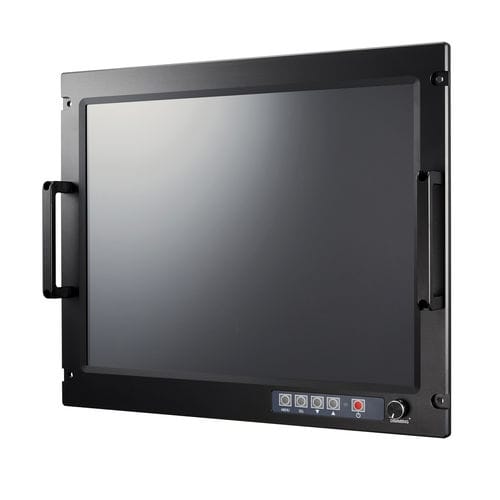

Military vessel display TMM-201

multi-function20"sunlight-readable

This specification defines the descriptions for the TMM-201 TFT LCD Monitor. TMM series is developed and designed for use in operator display such as Military applications. TMM series are subject to strict quality tests performed both internally and by independent Military test rule. KEY FEATURES MIL Qualified Product from Military test rule Anti-Glare and Anti-Reflective TFT LCD Technology LED Backlight Technology Tempered Glass for Panel Protection Long-Term Lifecycle Management SPECIFICATION GENERAL FEATURE Section - Specifications TFT Technology - Active Matrix Liquid Crystal Display, Amorphous TFT (Thin Film Transistor) Anti-Glare & Anti-Reflective, LED Backlight Technology Active Area - 408 (H) x 306 (V)mm Resolution - 1600 (H) x 1200 (V) Pixel Pitch - 0.255 (H) x 0.255 (V)) Aspect Ratio - 4:3 Response Time - 30ms Brightness - 330cd/㎡ Contrast Ratio - 1400:1 Viewable Angle - 170°RL / 170°UD Max Colors - 16.7Million True Color Synchronization Range - 31~80KHz (Horizontal) 55~76Hz (Vertical) Optimal Resolution - 1600 x 1200 @60Hz Input Signal - 1 x VGA (D-SUB 15p female) 1 x DVI-D (DVI 24p female) 1 x RS232 (D-SUB 9p female) User Control - OSD-Button : Power, Menu, Select, Up, Down Dimming Control : 0~100% Power Consumption - 50W (MAX) Power Specification - 100~230VAC 50/60Hz (Military connector) Product Dimension - 483mm (W) x 399mm (H) x 83mm (D) Weight - 12kg EMC - MIL-STD-461E CE102, CS101, CS114, CS116, RE101, RE102, RS101, RS103 Environmental (Test Approval) - MIL-STD 810F:2003 Method 502.4 Procedure I, II MIL-STD 810F:2003 Method 501.4 Procedure I, II MIL-STD 810F:2003 Method 507.4 Chassis - Aluminum
