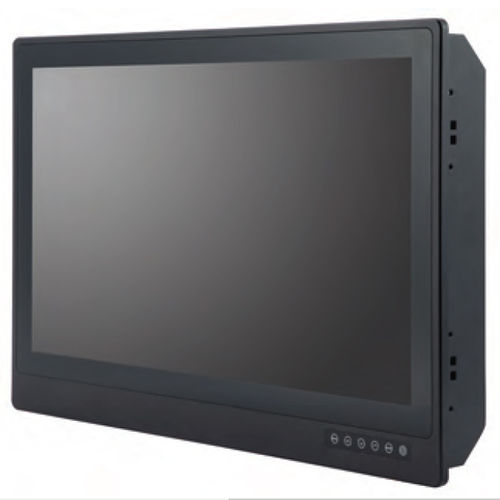

Boat display TIMX-W260

for shipsfor yachtsmulti-function

This specification defines the descriptions for the TIMX-W260 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications. KEY FEATURES Capacitive touch OSD Control Digital, DVI, RGB, BNC (Option) input Picture in Picture (PIP) Projected Capacitive Touch Screen – Option Anti-glare – Option Internal Buzzer Control – Option Flush Mounting SPECIFICATION GENERAL FEATURE Section - Specifications Display type - LED Backlight, Wide TFT LCD Resolution - 1920 x 1200 @60Hz Aspect Ratio - 16:10 Brightness - 350cd/㎡ Contrast Ratio - 1500:1 Response Time - 20ms Active Area - 550.08 (H) x 343.8 (V) mm Pixel Pitch - 0.2865 (H) x 0.2865 (V) mm Viewable Angle - 176° RL / 176° UD Support Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76 Hz (Vertical) Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 1920 x 1200 Connector Types - 1 x HDMI (Standard) 1 x DVI (DVI 24p female) 1 x RGB (D-SUB 15p female) 2 x Composite (CVBS) 1 x RS232 (D-SUB 9p female) 1 x RS-422/485 (Euro Terminal Block) Power Specification - 100~230VAC 50/60Hz (IEC Standard Type) DC24V (Terminal Block) Power Consumption - 45W (MAX) Product Dimension - 621 (W) x 80 (D) x 435 (H) mm Weight - 13kg Temperature Range - Operating : -15℃ to +55℃ Non-Operating : -20℃ to +60℃ Humidity Range - Operating : up to 95% Non-Operating : up to 95% Options - Projected Capacitive Touch Screen Anti Glare Glass, Optical Bonding Sunlight Readable/High Brightness RS-232/422/485 Composite Video Buzzer IP-Rating - IP65 Front Test Approval - IEC 60945 4th, IACS E-10, IEC 60529 Certification - DNV GL Warranty - 24 months
