Boat display P1917S

for shipsfor yachtsmulti-function

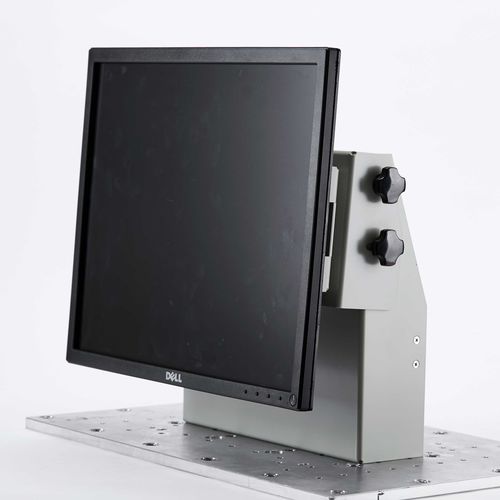

Dell 19 inch LCD monitor, P1917S is type approved for marine usage when it is used in conjunction with a TD Kit, TVK-DM-001. The combination (P1917S + TVK-DM-001) can be used in operator display in various industrial and marine applications. KEY FEATURES Wide viewing angle by IPS pannel : 178/178 Flicker-free screen with ComportView Display Port 1.2, HDMI 1.4, VGA, 2x USB 3.0, 2x USB 2.0 Under certification by ABS, DNV GL, LR, KR IACS E10 & IEC60945 for wheel-house installation SPECIFICATION GENERAL FEATURE Section - Specifications Display type - Active matrix - TFT LCD Resolution - 1280 x 1024 @60Hz Aspect Ratio - 5:4 Brightness - 250cd/㎡ Contrast Ratio - 1000:1 Response Time - 8 ms Active Area - 374.78 (H) x 299.83 (V) mm Pixel Pitch - 0.293 (H) x 0.293 (V) mm Viewable Angle - 178° RL / 178° UD Support Color - 16.7M colors Synchronization Range - 30 ~ 81 Hz (Horizontal) 56 ~ 76 Hz (Vertical) Connector Type - 1 x DP 1 x HDMI 1 x VGA 1 x USB 3.0 port (Upstream) 2 x USB 3.0 port (Side) 2 x USB 2.0 port (Bottom) Power Specification - 100 ~ 240 VAC 50/60Hz 1.5A Consumption - 38W (MAX) Dimension (Kit mounted) - 405.6 (W) x 395 (H) x 185 (D) mm Weight (Kit mounted) - 5.0kg Temperature Range - Operating : 0℃ ~ + 55℃ Non-Operating : -20℃ ~ + 60℃ Humidity Range - Operating : up to 90% Non-Operating : up to 90% Certification - ABS, BV, CCS, DNV GL, KR, LR, NK Warranty - 36 months
