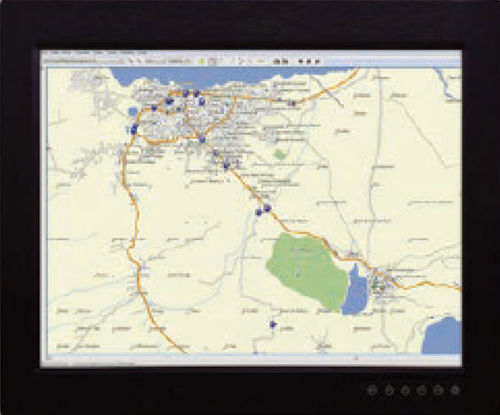

Boat display TCM-N190SR

for shipsfor yachtsvideo

This specification defines the descriptions for the TCM-N190SR TFT LCD Monitor. TCM series is developed and designed for use in operator display such as Industrial and Marine & Outdoor applications. KEY FEATURES 3mm Anti-Glare Protective Glass Sunlight Readable / High Brightness Panel (1,500cd/㎡) Picture in Picture (PIP) SPECIFICATION GENERAL FEATURE Section - Specifications TFT Technology - Active Matrix Liquid Crystal Display Amorphous TFT (Thin Film Transistor) Anti-Glare & Anti-Reflective LED Backlight Technology Active Area - 376.320mm (H) x 301.060mm (V) Resolution - 1280 x 1024 Pixel Pitch - 0.294 (H) x 0.294 (V) Aspect Ratio - 5:4 Response Time - 5ms Brightness - 1,500cd/㎡ Contrast Ratio - 1000:1 Viewable Angle - 170°RL / 160°UD Max Colors - 16.7Million True Color Synchronization Range - 31~80KHz (Horizontal) 55~76Hz (Vertical) Optimal Resolution - 1280 x 1024 @60Hz Detectable Resolution - 640 x 350, 640 x 400, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024 Input Signal - 1 x VGA, 1 x DVI Signal Option - 1 x S-VIDEO, 1 x CVBS (BNC type), 1 x USB (USB B-type) Dimming - OSD Dimming Control (perfect dimming) IP Rating - IP65 (Front) Power Specification - 100~230VAC 50/60Hz Consumption - 40W (MAX) Product Dimension - 470mm (W) x 75mm (D) x 397mm (H)) Weight - 7.8kg Operation Conditions - Temperature : -15℃ to +50℃ Humidity : up to 95% Storage Conditions - Temperature : -20℃ to +60℃ Humidity : up to 95% Bracket Mount - Flush Mount, VESA Mount, Back Mount, Stand (Option)
