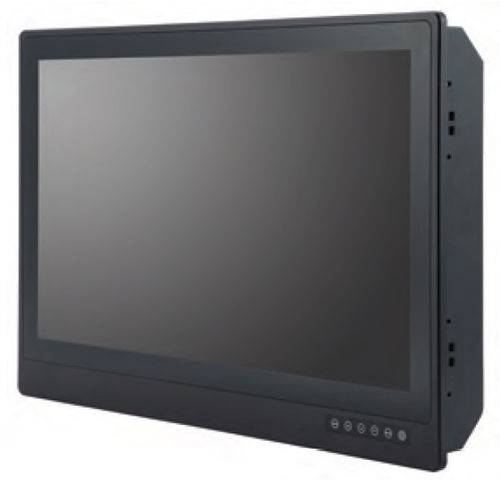

Boat display TIMX-W230

for shipsfor yachtsfor control

This specification defines the descriptions for the TIMX-W230 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications. KEY FEATURES Capacitive touch OSD Control HDMI, DVI, RGB input Full Range Digital Dimming Control Picture in Picture (PIP) Optional Power Supplies (AC or DC) Resistive Touch Screen Anti-glare, Internal Buzzer Control, RS-232/422/485 – Option VESA, Flush, Stand Mounting Display type - LED Backlight, Wide TFT LCD Resolution - 1920 x 1080 @60Hz Aspect Ratio - 16:9 Brightness - 300cd/㎡ Contrast Ratio - 1000:1 Response Time - 14ms Active Area - 509.184mm (H) x 286.416mm (V) Pixel Pitch - 0.2652 (H) x 0.2652 (V) mm Viewable Angle - 178° RL / 178° UD Supports Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76Hz (Vertical) Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 Connector Types - 1 x HDMI (Standard) 1 x DVI (DVI 24p female) 1 x RGB (D-SUB 15p female) Power Specification - 100~230VAC 50/60Hz (IEC Standard Type) or DC24V (Terminal Block)
