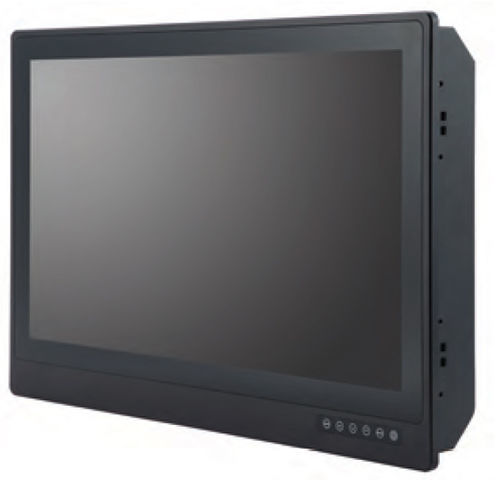

Marine display TIMX-W190

for shipsfor yachtsfor control

This specification defines the descriptions for the TIMX-W190 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications. Capacitive touch OSD Control DVI, RGB input Full Range Digital Dimming Control Picture in Picture (PIP) Optional Power Supplies (AC or DC) Resistive Touch Screen, Anti-glare, Internal Buzzer Control – Option VESA, Flush, Stand Mounting Display type - LED Backlight, Wide TFT LCD Resolution - 1280 x 1024 @60Hz Aspect Ratio - 5:4 Brightness - 250cd/㎡ Contrast Ratio - 1000:1 Response Time - 5ms Active Area - 376.32mm (H) x 301.06mm (V) Pixel Pitch - 0.294 (H) x 0.294 (V) mm Viewable Angle - 178° RL / 160° UD Supports Color - 16.7M colors Synchronization Range - 31~80 Hz (Horizontal) 55~76Hz (Vertical) Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 Connector Types - 1 x DVI (DVI 24p female) 1 x RGB (D-SUB 15p female) Power Specification - 100~230VAC 50/60Hz (IEC Standard Type) or DC24V (Terminal Block) Power Consumption - 35W (MAX) Dimension - 483 (W) x 70 (D) x 399 (H) mm Weight - 8.7kg Temperature Range - Operating : -15℃ to +55℃ Non-Operating : -20℃ to +60℃
