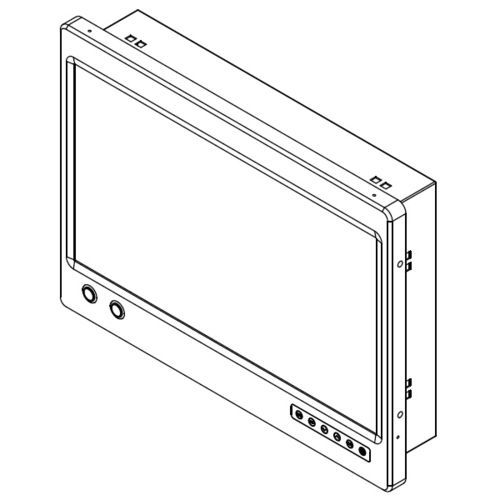

Boat display TIM-W173SK

for shipsfor yachtsmulti-function

This specification defines the descriptions for the TIM-W173SK TFT LCD Monitor. TIM-W series is developed and designed for use in operator display such as Naval and Marine applications. DVI, RGB Input Audio Input / 10 Watt Speaker Built-In Picture in Picture (PIP) Capacitive touch OSD Control Active Area - 381.888(H) x 214.812(V)mm Resolution - 1920 x 1080 Pixel Pitch - 0.1989(H) x 0.1989(V)mm Aspect Ratio - 16:9 Response Time - 18ms Brightness - 400cd/㎡ Contrast Ratio - 600:1 Viewable Angle - 80°/80°/60°/80°(R/L /U/D) Max Colors - 16.7 Million True Color Synchronization Range - 31~80KHz (Horizontal) 55~76Hz (Vertical) Optimal Resolution - 1920 x 1080 @60Hz Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 1920 x 1080 Input Signal - 1 x VGA In 1 x DVI In 1 x Audio In 1 x PC Power/Alarm Button Control Power Specification - 100~230VAC 50/60Hz (Terminal Block) Power Consumption - 30W (MAX) Product Dimension - 420(W) x 80(D) x 310(H)mm Weight - 6.6kg Operation Conditions - Temperature : -15℃ to +55℃ Humidity : up to 95% Storage Conditions - Temperature : -20℃ to +60℃ Humidity : up to 95%
