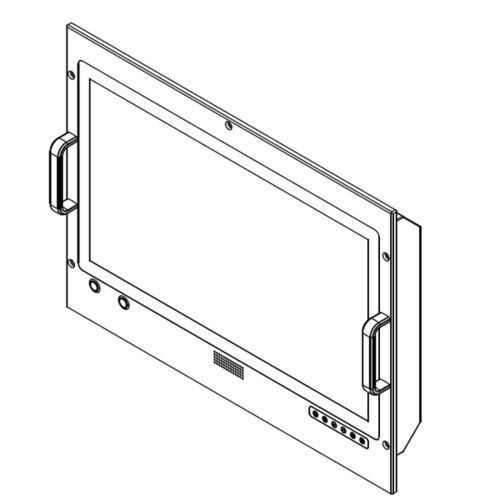

Boat display TIM-W220SK

for shipsfor yachtsmulti-function

This specification defines the descriptions for the TIM-W220SK TFT LCD Monitor. TIM-W series is developed and designed for use in operator display such as Naval and Marine applications. DVI, RGB Input Audio Input / 5 Watt Speaker Built-In Picture in Picture (PIP) Capacitive touch OSD Control Projected Capacitive Touch Screen – Option Active Area - 476.64(H) x 268.11(V)mm Resolution - 1920 x 1080 Pixel Pitch - 0.24825(H) x 0.24825(V)mm Aspect Ratio - 16:9 Response Time - 18ms Brightness - 300cd/㎡ Contrast Ratio - 1500:1 Viewable Angle - 89°/89°/89°/89°(R/L /U/D) Max Colors - 16.7 Million True Color Synchronization Range - 31~80KHz (Horizontal) 55~76Hz (Vertical) Optimal Resolution - 1920 x 1080 @60Hz Detectable Resolution - 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 1920 x 1080 Input Signal - 1 x VGA In 1 x DVI In 1 x Audio In 1 x PC Power/Alarm Button Control Power Specification - 100~230VAC 50/60Hz (Terminal Block) Power Consumption - 35W (MAX) Product Dimension - 560(W) x 70(D) x 420(H)mm Weight - 9.8kg Operation Conditions - Temperature : -15℃ to +55℃ Humidity : up to 95% Storage Conditions - Temperature : -20℃ to +60℃ Humidity : up to 95% Options - Projected Capacitive Touch Screen, Anti Glare Glass, Optical Bonding, Sunlight Readable/High Brightness, RS-242/422/485, Buzzer, Composite Video Test Approval - IACS E-10
