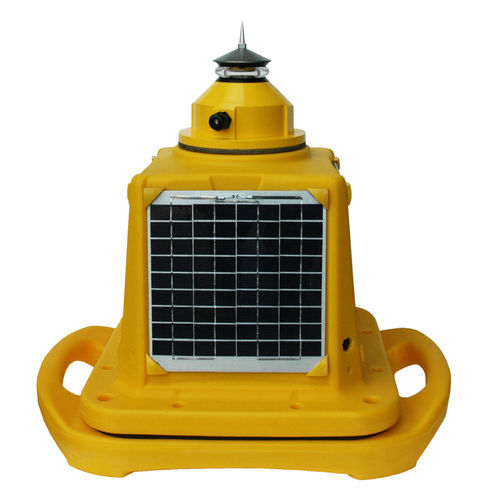

Beacon signalling light Nova-65 SC
LEDincandescentsolar

Beacon signalling light - Nova-65 SC - Tideland Signal - LED / incandescent / solar
Beacon signalling light - Nova-65 SC - Tideland Signal - LED / incandescent / solar
Beacon signalling light - Nova-65 SC - Tideland Signal - LED / incandescent / solar - image - 2
Beacon signalling light - Nova-65 SC - Tideland Signal - LED / incandescent / solar - image - 3
Beacon signalling light - Nova-65 SC - Tideland Signal - LED / incandescent / solar - image - 4
Add to favorites
Compare this product


Characteristics

Application domain
for beacons
Light source
LED, incandescent, solar
Color
white, red, green, yellow, blue
Mounting
fixed
Voltage
12 V
Other characteristics
solar
Visibility arc

360 °

Power consumption

5 W

Service temperature

Max.: 70 °C
(158 °F)

Min.: -40 °C
(-40 °F)

Weight

20 kg
(44.1 lb)

Length

578 mm
(23 in)

Width

410 mm
(16 in)

Height

549 mm
(22 in)

Description

he Nova-65 SC features unique and proprietary optics which provide a 360° beam at 5°, 10°, 20° or 30° vertical divergence. Utilizing a highly efficient compact lens, the Nova-65 SC is engineered to utilize the advanced and cost-effective technology of LEDs. Solar modules and high-grade batteries are housed in a compact self-contained marine lantern, designed for low maintenance with a projected service life of 10 years before any significant maintenance is needed. The 5° and 10° divergence lenses are ideal for fixed or floating aids to navigation while the 20° or 30° lens provides exceptional performance on buoys. The 5° lens can be used to meet specific needs that require a much longer range while still using a minimal amount of power. CHARACTERISTICS User selectable power setting for visual range Photovoltaic system sized for demanding locations SignalView software to program user options Temperature compensated LED drive circuits ensure uniform brightness with ambient temperature change Availability in all IALA approved colors Constant current power source for maximum LED lifetime Optional GPS synchronization module Optional GSM and Satellite monitoring Optional AIS AtoN module for message 21and monitoring via message 6 256 user selectable flash characters Full monitor and control capability Optional 5°, 10°, 20° or 30° lens

Catalogs
