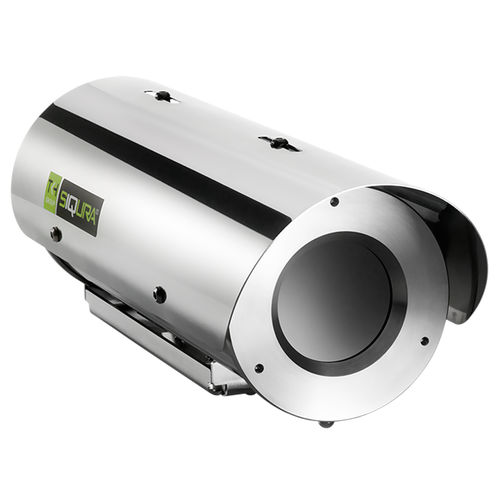

CCTV video camera SA-FIX T series
professionalthermalfixed

CCTV video camera - SA-FIX T series - TKH Security Solutions - professional / thermal / fixed
CCTV video camera - SA-FIX T series - TKH Security Solutions - professional / thermal / fixed
Add to favorites
Compare this product


Characteristics

Type
CCTV
Application domain
professional
Technology
thermal
Mounting
fixed
Voltage
12 V, 24 V, 230 V, 115 V
Material
stainless steel
Protection level
corrosion-resistant, IP66, IP67
Weight

7 kg
(15 lb)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 75 °C
(167 °F)

Description

The SA-FIX T camera housing is a rugged corrosion proof camera housing designed for thermal imaging to be used in onshore, offshore, marine and heavy industrial environments. The camera housing is constructed from electro-polished 316L stainless steel for maximum corrosion protection and is fitted with an 316L sun-shield and a thermostatically controlled heater element. The housing is not sold separately, it is only available in combination with a Siqura thermal module TC-336 or TC-640 and an interface (INT-RJ/SM/MM). Features Corrosion protected 316L stainless-steel Hard carbon coated germanium window ∅ 50 mm Suited for 7.5, 9, 13, 19, 25, 35, 50 mm thermal lenses Integrated power supply (24, 115 or 230 Vac) Low maintenance Integrated heater Electro-polished 316L sun-shield Description Thermal imaging The SA-FIX T is fitted with a hard carbon coated germanium window, specially made to house Siqura’s thermal modules TC-336 or TC-640 up to a 50 mm lens. Making thermal imaging or night vision possible in extreme environmental conditions. Corrosion free 316L construction. The SA-FIX T housing is suited to be used in salty or sulfur rich environments. 100% of the camera housing is made of corrosion proof 316L steel. The germanium window is treated with a special hard carbon coating (DLC) to protect it against scratches and chemical substances.
