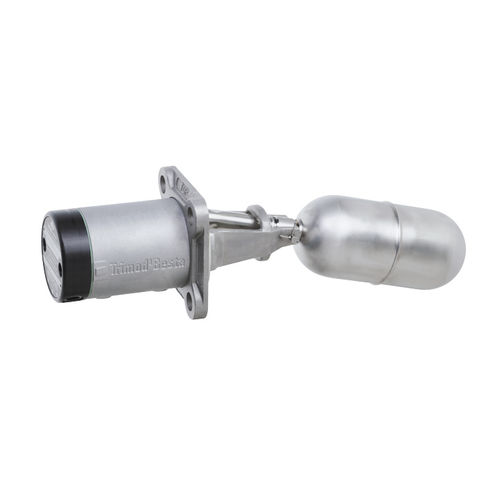

Magnetic float level switch M 01 04 seriesfor boatsfor tankpump
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Application domain
- for boats
- Applications
- for tank, pump
Description
Function proportional controller
Supply pressure 1.4 bar
Output signal 0.2 to 1 bar
Nominal pressure PN 25 according to EN/DIN
Operating temperature 1 to 250°C
Ambient temperature 1 to 80°C
Density of the liquid min. 0.7 kg / dm³
Control range without rod: 30 mm
with rod: max. 230 mm
Control connections G 1/8″ (BSPP) IT
Wetside material Stainless steel (CrNiMo)
Housing material seawater resistant die cast aluminium
Approvals ABS, BV, ClassNK, DNV-GL, LR, RINA
