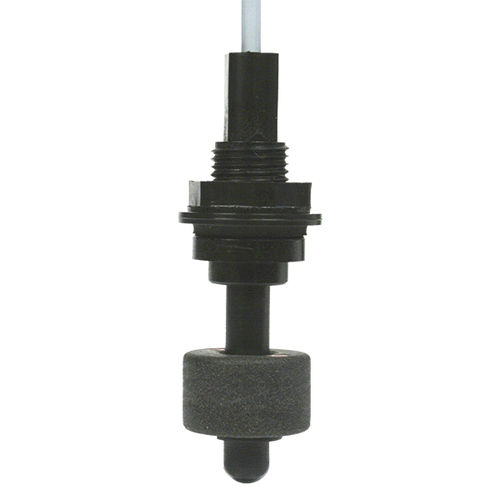

Float level switch SR 51

for boatsfor tankpump

Cost-effective float switch made from POM/Buna with one switch point and a fixed length of 45 mm. Changeover of the NO/NC function by turning over the float. Opener 1 Closer - 100 VAC/DC; 10VA/W; 0.5 A Switch function - normally closed / normally open / by turning the float normally open in normally closed Cable - 1 m PVC 2 x 0.25 mm3 Enclosure - IP54 Temperature - -30 to +90°C Medium density - > 500 kg/m3 Max. Pressure - 10 bar Mountig direction - vertical, ± 30° Tube length L - fixed Tube length (し=45 mm) Process connection - M16X1.5 Material - POM/Buna
