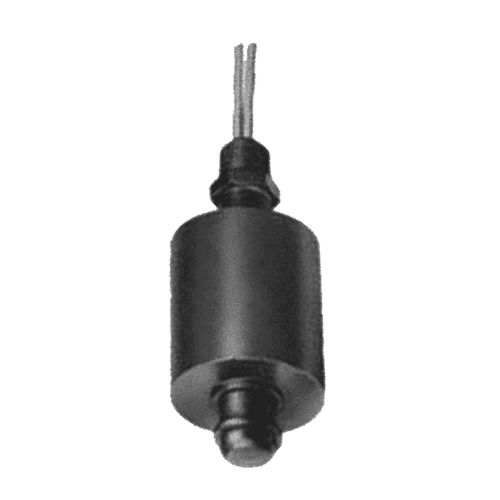

Float level switch LS-74780for boatsfor water tankspump
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Application domain
- for boats
- Applications
- for water tanks, pump
Description
Robust single level float switch made from specially developed plastics for aggressive or ultra-pure liquids.
Opener / Closer SPST 20 VA/0.5A/250 VAC
Switch function - factory setting is NO (normally open) NO or NC (normally closed) can be selected by reversing the float
Fly lead - PVC AWG 18，Length 60 cm
Enclosure - IP64
Temperature - -40 to +80°C
Medium density - > 850 kg/m3
Max. Pressure - 1 bar
Mountig direction - vertical
Tube length L - fixed Tube length (L=87.5 mm)
Process connection - %D NPT
Material - CPVC
